Wire Connector

Embrace the reliability of our Wire Connector, engineered to meet the highest standards in safety, conductivity, and durability. As a trusted supplier to industries like electrical contracting, manufacturing, and distribution, we offer a superior selection including the Heavy Power Closed End Wire Connector, CE2X Closed End Wire Connector, and CE2X Heavy Power Closed End Wire Connector, ensuring the most suitable options for diverse wiring needs. Our connectors are featured for their finest insulation performance, best-in-class mechanical grip, and exceptional resistance to heat and corrosion, delivering peace of mind even in the most demanding installations. Get uncompromising security with fast, easy installation, while hot deal pricing makes quality accessible across All India. Experience the ultimate in reliability with our closed end wire connectors, favored by professionals for their superior build quality, long-lasting performance, and unmatched connection integrity. Whether for residential upgrades or large-scale industrial projects, our wire connectors represent the pinnacle of innovation and value, backed by over nan years of expertise in the field. Don't settle for less-choose the best for your wiring applications with our trusted products, ensuring every connection is as safe, stable, and efficient as possible.

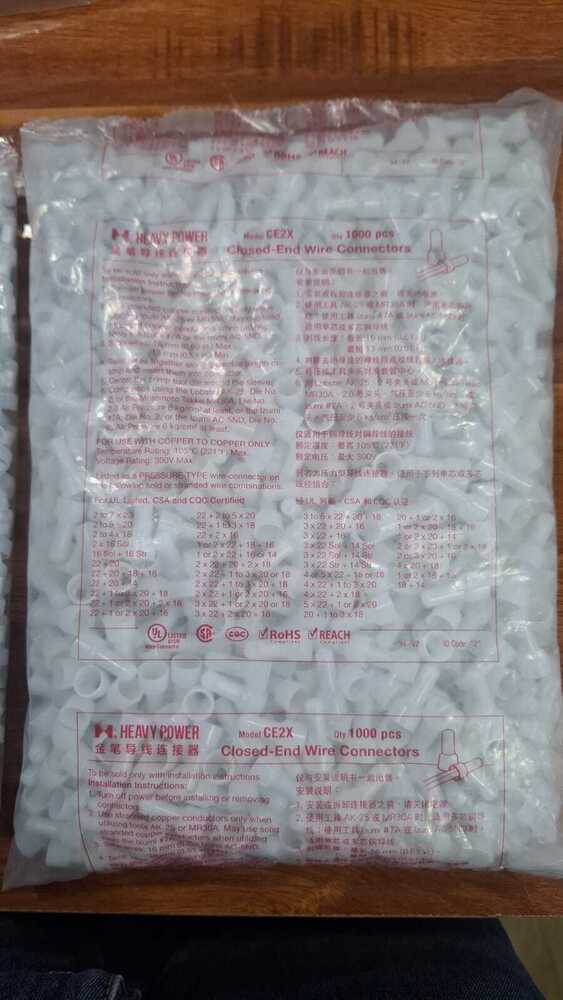

Heavy Power Closed End Wire Connector

MOQ : 100 Packs

  • Application
  • Wire Connection, Electrical Distribution Boxes
  • Cable Capacity
  • Accepts 2-4 wires (depending on AWG)
  • Cable Length
  • Varies / Not Applicable
  • Color
  • White
  • Conductor Material
  • Copper Insert
  • Conductor Type
  • Solid or Stranded Copper
  • Connector Type
  • Closed End
  • Diameter
  • Approx 8mm
  • Function
  • Wire Joint/Termination
  • Insulation Material
  • Nylon
  • Length
  • Approx. 22mm
  • Material
  • Nylon
  • No Of Core
  • 2-4 (Depending on wire size)
  • Product Type
  • Closed End Wire Connector
  • Rated Current
  • Max 10A
  • Rated Voltage
  • 600V
  • Size
  • 22-10 AWG
  • Temperature
  • -40C to +105C
  • Usage
  • Electrical Wiring Interconnection
  • Voltage Surge
  • 600V Max

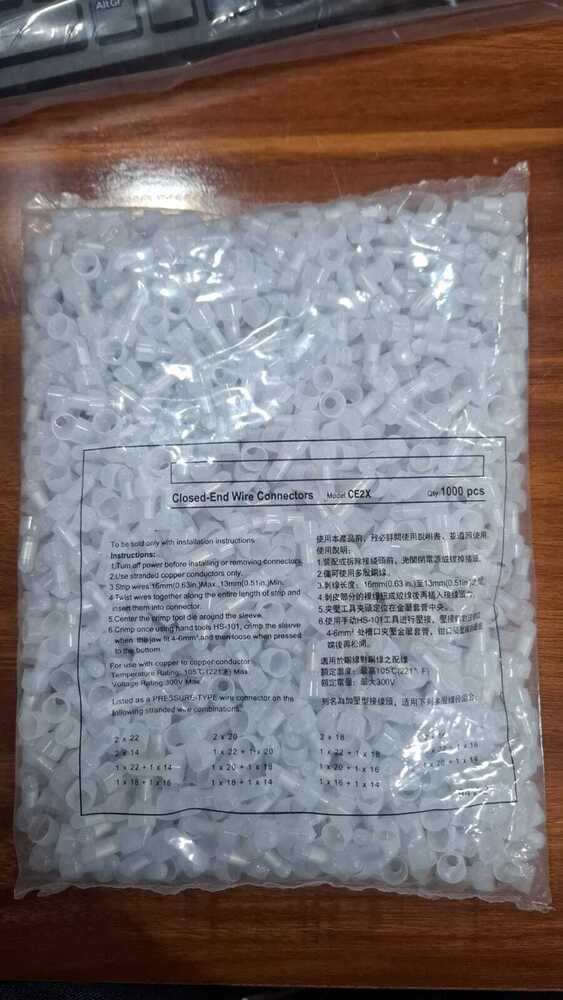

Closed End Wire Connector

MOQ : 100 Packs

  • Application
  • Electrical wire splicing, house wiring, lighting, appliances, industrial distribution
  • Cable Capacity
  • 18-22 AWG (varies by size)
  • Cable Length
  • Depends on installation requirement
  • Color
  • White
  • Conductor Material
  • Copper
  • Conductor Type
  • Solid/Stranded
  • Connector Type
  • Closed End
  • Diameter
  • Approx. 5.5mm (varies by size)
  • Function
  • Wire Termination and Connection
  • Insulation Material
  • Nylon
  • Length
  • Varies by model/size, approx. 21mm
  • Material
  • Nylon (Insulation), Tin-Plated Copper (Terminal)
  • No Of Core
  • Single Connector can join multiple wires
  • Product Type
  • Closed End Wire Connector
  • Rated Current
  • Varies by size, up to 10A
  • Rated Voltage
  • 600V
  • Size
  • Standard (can vary: #22-#16 AWG, check package)
  • Temperature
  • -40C to +105C
  • Usage
  • Used to connect and terminate electrical wires securely
  • Voltage Surge
  • 600V max

Heavy Power Closed End Wire Connector

MOQ : 100 Packs

  • Application
  • Electrical wiring, panel board, junction box
  • Cable Capacity
  • Accepts wires 22 to 10 AWG (depending on connector size)
  • Cable Length
  • Not specified (depends on installation)
  • Color
  • White
  • Conductor Material
  • Tin-plated copper tube insert
  • Conductor Type
  • Solid and stranded
  • Connector Type
  • Closed End Splice Connector
  • Diameter
  • Varies by model, e.g., CE-2 approx. 6.3 mm
  • Function
  • Wire connection and insulation protection
  • Insulation Material
  • Nylon 66, UL94V-2 flame retardant
  • Length
  • Varies by type, typically 21.5 mm (for CE-2)
  • Material
  • Nylon 66
  • No Of Core
  • Supports single or multiple wires
  • Product Type
  • Heavy Power Closed End Wire Connector
  • Rated Current
  • Varies by connector size, up to 24A
  • Rated Voltage
  • 600V max
  • Size
  • CE-1, CE-2, CE-5, and others as per model
  • Temperature
  • -40C to 105C
  • Usage
  • Used to connect and terminate electrical wires safely
  • Voltage Surge
  • Up to 600V

CE2X Closed End Wire Connector

MOQ : 100 Packs

  • Application
  • Domestic, Commercial, and Industrial Electrical Wiring
  • Cable Capacity
  • Typically 22-14 AWG (0.5-2.5mm2)
  • Cable Length
  • Variable as per installation
  • Color
  • White
  • Conductor Material
  • Copper
  • Conductor Type
  • Stranded or Solid Wire
  • Connector Type
  • Closed End / Twist-On Connector
  • Diameter
  • Approx. 6mm (outer)
  • Function
  • Electrical Connection and Insulation
  • Insulation Material
  • Nylon
  • Length
  • Approximately 22mm
  • Material
  • Nylon Body, Tin-plated Copper Insert
  • No Of Core
  • Single wire connection or multiple wires
  • Product Type
  • Closed End Wire Connector
  • Rated Current
  • Depends on wire size, typically up to 20A
  • Rated Voltage
  • 600V
  • Size
  • CE2X
  • Temperature
  • Max 105C
  • Usage
  • Ideal for joining wires in various electrical and electronic devices
  • Voltage Surge
  • Up to 600V max for building wiring; 1000V max for signs and fixtures

CE2X Heavy Power Closed End Wire Connector

MOQ : 100 Packs

  • Application
  • Industrial, Domestic Electrical Wiring
  • Cable Capacity
  • 14-22 AWG (1.5-2.5 mm2)
  • Cable Length
  • As per requirement
  • Color
  • White/Clear
  • Conductor Material
  • Copper
  • Conductor Type
  • Stranded or Solid
  • Connector Type
  • Closed End, Heavy Power
  • Diameter
  • As per CE2X dimensions
  • Function
  • Wire Joining and Termination
  • Insulation Material
  • Nylon
  • Length
  • As per CE2X standard specifications
  • Material
  • Nylon Insulated, Tin Plated Copper
  • No Of Core
  • Single Core per connector
  • Product Type
  • Heavy Power Closed End Wire Connector
  • Rated Current
  • 10A - 24A (depending on wire size)
  • Rated Voltage
  • 300V
  • Size
  • Standard CE2X size
  • Temperature
  • -40C to +105C
  • Usage
  • Electrical Connections
  • Voltage Surge
  • Withstands up to standard surges

CE2X Closed End Wire Connector

MOQ : 100 Packs

  • Application
  • Electrical Wire Joining and Securing
  • Cable Capacity
  • 22-16 AWG
  • Cable Length
  • Dependent on Installation
  • Color
  • White / Transparent
  • Conductor Material
  • Copper
  • Conductor Type
  • Solid or Stranded Wire
  • Connector Type
  • Closed-End Twist On
  • Diameter
  • Approx. 5.3 mm
  • Function
  • Wire Termination and Splicing
  • Insulation Material
  • Nylon
  • Length
  • Varies, Standard CE2X Size
  • Material
  • Nylon
  • No Of Core
  • Applicable for Single or Multiple Wires
  • Product Type
  • Closed End Wire Connector
  • Rated Current
  • 10A
  • Rated Voltage
  • 300V
  • Size
  • CE2X Standard
  • Temperature
  • 105C Max
  • Usage
  • Electrical Wiring
  • Voltage Surge
  • Withstands standard voltage surges
